Телекоммуни- кационные шкафы и стойки

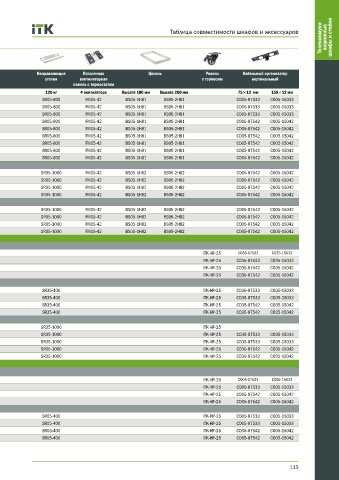

Таблица совместимости шкафов и аксессуаров

Высота Размер, Артикул Стационарная Стационарная Полка Консольная Консольная полка Направля ющие Потолочная Цоколь Ролики Кабельный организатор
(U) мм полка полка выдвижная полка 1U 2U уголки вентиляторная с тормозом вертикальный
(усиленная) панель с термостатом
h = U ШГ 100 кг 200 кг 40 кг 280 мм 350 мм 550 мм 120 кг 4 вентилятора Высота 100 мм Высота 200 мм 7512 мм 15012 мм
33U 8001000 LS05-33U81-P FS05-800PI FS05-800MP SS05-800PI RS05-280M RS05-350P RS05-550P SR05-800 FM05-42 BS05-1H81 BS05-2H81 CO05-07533 CO05-15033
33U 8001000 LS05-33U81-PP FS05-800PI FS05-800MP SS05-800PI RS05-280M RS05-350P RS05-550P SR05-800 FM05-42 BS05-1H81 BS05-2H81 CO05-07533 CO05-15033
33U 8001000 LS05-33U81-2PP FS05-800PI FS05-800MP SS05-800PI RS05-280M RS05-350P RS05-550P SR05-800 FM05-42 BS05-1H81 BS05-2H81 CO05-07533 CO05-15033
42U 8001000 LS05-42U81-P FS05-800PI FS05-800MP SS05-800PI RS05-280M RS05-350P RS05-550P SR05-800 FM05-42 BS05-1H81 BS05-2H81 CO05-07542 CO05-15042
42U 8001000 LS05-42U81-PP FS05-800PI FS05-800MP SS05-800PI RS05-280M RS05-350P RS05-550P SR05-800 FM05-42 BS05-1H81 BS05-2H81 CO05-07542 CO05-15042
42U 8001000 LS05-42U81-2PP FS05-800PI FS05-800MP SS05-800PI RS05-280M RS05-350P RS05-550P SR05-800 FM05-42 BS05-1H81 BS05-2H81 CO05-07542 CO05-15042
47U 8001000 LS05-47U81-P FS05-800PI FS05-800MP SS05-800PI RS05-280M RS05-350P RS05-550P SR05-800 FM05-42 BS05-1H81 BS05-2H81 CO05-07542 CO05-15042
47U 8001000 LS05-47U81-PP FS05-800PI FS05-800MP SS05-800PI RS05-280M RS05-350P RS05-550P SR05-800 FM05-42 BS05-1H81 BS05-2H81 CO05-07542 CO05-15042
47U 8001000 LS05-47U81-2PP FS05-800PI FS05-800MP SS05-800PI RS05-280M RS05-350P RS05-550P SR05-800 FM05-42 BS05-1H81 BS05-2H81 CO05-07542 CO05-15042
6001200
42U 6001200 LS05-42U62-PP FS05-1000PI FS05-1000MP SS05-1000PI RS05-280M RS05-350P RS05-550P SR05-1000 FM05-42 BS05-1H62 BS05-2H62 CO05-07542 CO05-15042
42U 6001200 LS05-42U62-2PP FS05-1000PI FS05-1000MP SS05-1000PI RS05-280M RS05-350P RS05-550P SR05-1000 FM05-42 BS05-1H62 BS05-2H62 CO05-07542 CO05-15042
47U 6001200 LS05-47U62-PP FS05-1000PI FS05-1000MP SS05-1000PI RS05-280M RS05-350P RS05-550P SR05-1000 FM05-42 BS05-1H62 BS05-2H62 CO05-07542 CO05-15042
47U 6001200 LS05-47U62-2PP FS05-1000PI FS05-1000MP SS05-1000PI RS05-280M RS05-350P RS05-550P SR05-1000 FM05-42 BS05-1H62 BS05-2H62 CO05-07542 CO05-15042
800х1200
42U 8001200 LS05-42U82-PP FS05-1000PI FS05-1000MP SS05-1000PI RS05-280M RS05-350P RS05-550P SR05-1000 FM05-42 BS05-1H82 BS05-2H82 CO05-07542 CO05-15042
42U 8001200 LS05-42U82-2PP FS05-1000PI FS05-1000MP SS05-1000PI RS05-280M RS05-350P RS05-550P SR05-1000 FM05-42 BS05-1H82 BS05-2H82 CO05-07542 CO05-15042
47U 8001200 LS05-47U82-PP FS05-1000PI FS05-1000MP SS05-1000PI RS05-280M RS05-350P RS05-550P SR05-1000 FM05-42 BS05-1H82 BS05-2H82 CO05-07542 CO05-15042
47U 8001200 LS05-47U82-2PP FS05-1000PI FS05-1000MP SS05-1000PI RS05-280M RS05-350P RS05-550P SR05-1000 FM05-42 BS05-1H82 BS05-2H82 CO05-07542 CO05-15042
Открытые стойки LINEA F (серые RAL7035)
Однорамные на роликах
32U 600600 LF35-32U66-1R RS35-280M RS35-350P RS35-550P ITK-HP-25 CO35-07533 CO35-15033
37U 600600 LF35-37U66-1R RS35-280M RS35-350P RS35-550P ITK-HP-25 CO35-07533 CO35-15033
42U 600600 LF35-42U66-1R RS35-280M RS35-350P RS35-550P ITK-HP-25 CO35-07542 CO35-15042
47U 600600 LF35-47U66-1R RS35-280M RS35-350P RS35-550P ITK-HP-25 CO35-07542 CO35-15042
Двухрамные на роликах
32U 600600 LF35-32U66-2R FS35-400PI FS35-400MP SS35-400PI RS35-280M RS35-350P SR35-400 ITK-HP-25 CO35-07533 CO35-15033
37U 600600 LF35-37U66-2R FS35-400PI FS35-400MP SS35-400PI RS35-280M RS35-350P SR35-400 ITK-HP-25 CO35-07533 CO35-15033
42U 600600 LF35-42U66-2R FS35-400PI FS35-400MP SS35-400PI RS35-280M RS35-350P SR35-400 ITK-HP-25 CO35-07542 CO35-15042
47U 600600 LF35-47U66-2R FS35-400PI FS35-400MP SS35-400PI RS35-280M RS35-350P SR35-400 ITK-HP-25 CO35-07542 CO35-15042
Двухрамные с регулируемой от 600 до 1000 мм глубиной
24U 600800 LF35-24U68-2R FS35-1000PI FS35-1000MP SS35-1000PI RS35-280M RS35-350P RS35-550P SR35-1000 ITK-HP-25
33U 600800 LF35-33U68-2R FS35-1000PI FS35-1000MP SS35-1000PI RS35-280M RS35-350P RS35-550P SR35-1000 ITK-HP-25 CO35-07533 CO35-15033
37U 600800 LF35-37U68-2R FS35-1000PI FS35-1000MP SS35-1000PI RS35-280M RS35-350P RS35-550P SR35-1000 ITK-HP-25 CO35-07533 CO35-15033
42U 600800 LF35-42U68-2R FS35-1000PI FS35-1000MP SS35-1000PI RS35-280M RS35-350P RS35-550P SR35-1000 ITK-HP-25 CO35-07542 CO35-15042
45U 600800 LF35-45U68-2R FS35-1000PI FS35-1000MP SS35-1000PI RS35-280M RS35-350P RS35-550P SR35-1000 ITK-HP-25 CO35-07542 CO35-15042
Открытые стойки LINEA F (черные RAL9005)
Однорамные на роликах
32U 600600 LF05-32U66-1R RS05-280M RS05-350P RS05-550P ITK-HP-25 CO05-07533 CO05-15033
37U 600600 LF05-37U66-1R RS05-280M RS05-350P RS05-550P ITK-HP-25 CO05-07533 CO05-15033
42U 600600 LF05-42U66-1R RS05-280M RS05-350P RS05-550P ITK-HP-25 CO05-07542 CO05-15042
47U 600600 LF05-47U66-1R RS05-280M RS05-350P RS05-550P ITK-HP-25 CO05-07542 CO05-15042
Двухрамные на роликах
32U 600600 LF05-32U66-2R FS05-400PI FS05-400MP SS05-400PI RS05-280M RS05-350P SR05-400 ITK-HP-25 CO05-07533 CO05-15033
37U 600600 LF05-37U66-2R FS05-400PI FS05-400MP SS05-400PI RS05-280M RS05-350P SR05-400 ITK-HP-25 CO05-07533 CO05-15033
42U 600600 LF05-42U66-2R FS05-400PI FS05-400MP SS05-400PI RS05-280M RS05-350P SR05-400 ITK-HP-25 CO05-07542 CO05-15042
47U 600600 LF05-47U66-2R FS05-400PI FS05-400MP SS05-400PI RS05-280M RS05-350P SR05-400 ITK-HP-25 CO05-07542 CO05-15042

113
